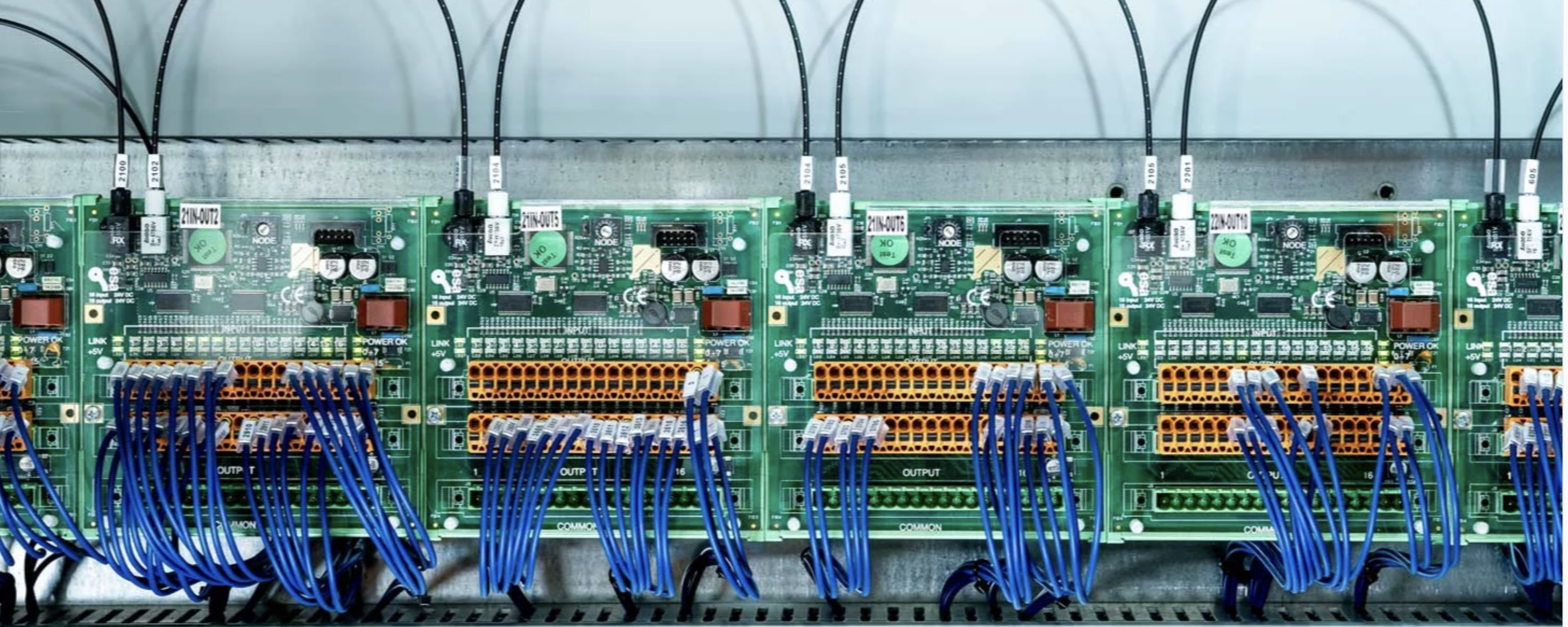

Expansion boards
Configure VIS-800 and VIS-900 systems with the I/O and application hardware each machine needs.
Explore the board families
FIBER OPTIC I/O LINK ETHERCAT
Configure VIS-800 and VIS-900 systems with the I/O and application hardware each machine needs.
Explore the board families
FIBER OPTIC I/O LINK ETHERCAT
Select the boards that match your I/O, connectivity, and process requirements without fitting unused standard hardware.
Choose from general-purpose, plasma, EtherCAT, and rack-mounted options.
Add digital and analog inputs, outputs, axes, and remote-control connections as required.
Connect compatible board families using fiber-optic I/O Link or EtherCAT.
These examples show how individual boards can extend a compatible CNC. Select the bus and hardware for the exact machine configuration.
| Board | Bus | Function | Application |
|---|---|---|---|
| BRD.007.450 | Fiber-optic I/O Link | 16 digital inputs + 16 digital outputs | General purpose; filtered inputs and 1 A protected outputs |
| BRD.018.401 | Fiber-optic I/O Link | 8 configurable analog inputs | Voltage/current, 12-bit resolution |
| BRD.007.435 | Fiber-optic I/O Link | Plasma generator interface | Arc voltage, torch height, probe, and alarms |
| BRD.007.452 | EtherCAT | 16 inputs + 16 outputs | Optoisolated 24 VDC digital I/O |
